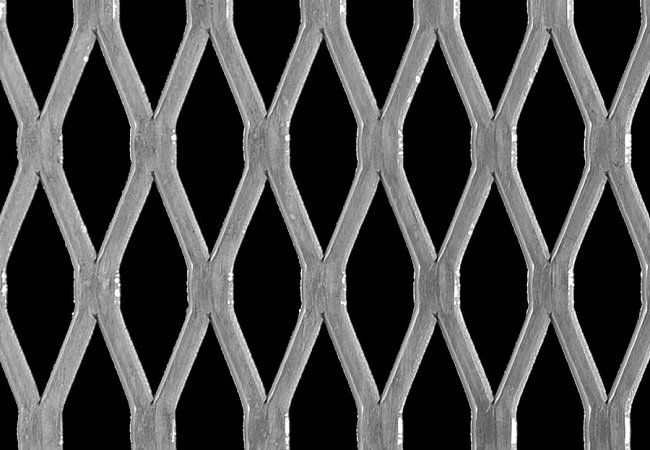

Aluminum Expanded Metal
Aluminum expanded metal in 1060 / 3003 / 5005 grades, raised or flattened, custom SWD, LWD and sheet sizes. Factory-direct supply for architectural, filtration and industrial applications.
Aluminum Expanded Metal Quick Specs
| Parameter | Range |
|---|---|
| Material Grades | 1060 / 3003 / 5005 / 5052 |
| Sheet Thickness | 0.5 – 8.0 mm |
| SWD (Short Way of Diamond) | 2.5 – 50 mm |
| LWD (Long Way of Diamond) | 4.5 – 100 mm |
| Strand Width | 0.5 – 5.0 mm |
| Max Sheet Size | 1500 × 3000 mm |
| Surface Finish | Mill / Anodized / Powder Coated / PVDF / Polished |
Aluminum Expanded Metal Specifications
| Thickness (mm) | SWD (mm) | LWD (mm) | Strand Width (mm) | Weight (kg/m²) | Sheet Size (mm) | Available Grade |
|---|---|---|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 | 0.7 | 1000 × 2000 | 1060 / 3003 |
| 0.8 | 5 | 10 | 1.0 | 1.1 | 1000 × 2000 | 1060 / 3003 |
| 1.0 | 10 | 25 | 1.2 | 1.4 | 1000 × 2000 / 1250 × 2500 | 1060 / 3003 / 5005 |
| 1.2 | 10 | 25 | 1.5 | 1.7 | 1000 × 2000 / 1250 × 2500 | 1060 / 3003 / 5005 |
| 1.5 | 15 | 30 | 2.0 | 2.1 | 1250 × 2500 | 3003 / 5005 |
| 2.0 | 20 | 50 | 2.5 | 2.7 | 1250 × 2500 / 1500 × 3000 | 3003 / 5005 / 5052 |
| 2.5 | 25 | 60 | 3.0 | 3.4 | 1250 × 2500 / 1500 × 3000 | 3003 / 5052 |
| 3.0 | 30 | 60 | 3.5 | 4.0 | 1250 × 2500 / 1500 × 3000 | 3003 / 5052 |
| 4.0 | 40 | 80 | 4.0 | 5.4 | 1500 × 3000 | 5052 |
| 5.0 | 50 | 100 | 5.0 | 6.8 | 1500 × 3000 | 5052 |
Custom SWD, LWD, strand width and sheet sizes available. Send your target specification for a tailored quotation.
Applications
Architectural & Decorative
Building facades, curtain wall cladding, ceiling panels, room dividers, sunshades, decorative screens.
Filtration & Separation
Air and oil filtration, screening, sifting, sieve supports, acoustic panels.
Walkway & Platform
Walkways, ramps, stair treads, working platforms, catwalk flooring.
Protection & Security
Machine guards, equipment enclosures, fencing, window protection, security grilles.
Quality & Supply
Material Traceability — Every aluminum coil and sheet is batch-recorded from incoming inspection to finished packing.
In-House Quality Control — Thickness, SWD, LWD and strand width are measured on every production batch.
Certification — ISO 9001 certified manufacturing process. Test certificates available on request.
Packing & Loading — Wooden pallets or steel-strapped bundles, seaworthy packing for container loading.
Related Products
FAQ
Aluminum Expanded Metal — FAQ
Q: What is the difference between raised and flattened expanded metal?

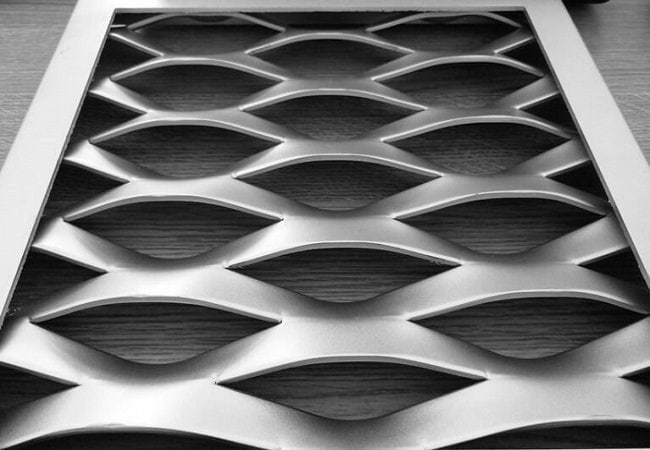

Raised expanded metal retains the 3D diamond profile created by the expansion press. Flattened expanded metal is cold-rolled after expansion, producing a flat, uniform surface with reduced overall thickness. Raised is preferred for slip resistance; flattened for flat architectural and filtration applications.
Q: What SWD and LWD sizes can you manufacture?
We produce SWD from 2.5 mm to 50 mm and LWD from 4.5 mm to 100 mm. Custom diamond patterns outside these ranges can be evaluated against your drawing.
Q: Can you produce custom diamond patterns?
Yes. Custom SWD, LWD, strand width and sheet dimensions are available. Send a drawing or target specification and we will confirm tooling and lead time.
Q: What is the typical lead time for a custom order?
Standard specifications ship in 7–15 days. Custom patterns and surface finishes typically require 15–25 days depending on quantity.
Q: Do you provide samples before bulk production?
Yes. Free samples of standard specifications are available; custom samples are quoted separately and the sample cost is refundable against the bulk order.
Q: What surface finishes are available for aluminum expanded metal?

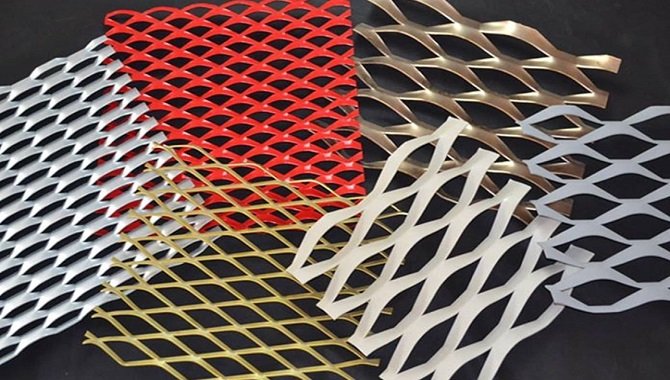

Mill finish, anodizing, powder coating, PVDF coating and polishing. Anodizing and PVDF are recommended for exterior architectural use.
Need a Custom Aluminum Expanded Metal Specification?
Send your thickness, SWD, LWD, strand width, sheet size and surface finish. We will reply with a factory quotation and lead time within 24 hours.
