When selecting industrial grating, engineers and procurement professionals often face a choice: expanded metal grating or traditional welded grating? While both are used for walkways, platforms, and safety barriers, their manufacturing processes, performance characteristics, and application advantages are fundamentally different.

Fundamental Difference in Manufacturing

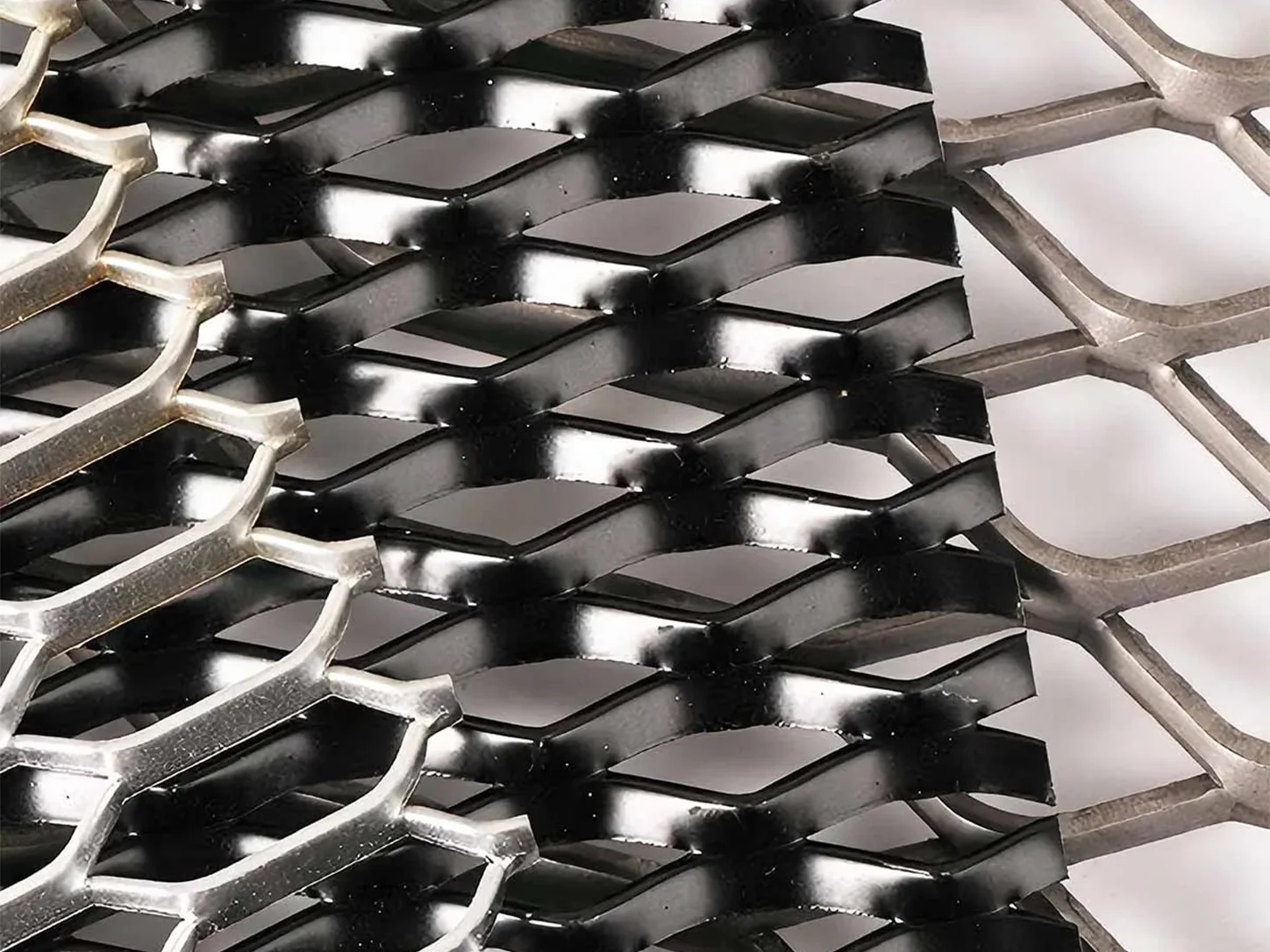

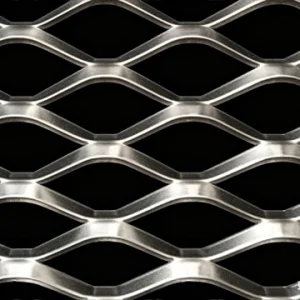

Expanded metal grating is formed from a single solid metal sheet by slitting and stretching – one continuous process with no welds. The sheet is cut and then pulled apart, creating a seamless diamond‑shaped mesh where strands and openings are one continuous piece. This process generates zero waste, achieving 100% material utilization.

Welded grating, in contrast, is assembled from independent load‑bearing bars (typically 2–8mm thick) and cross bars (round or twisted square) joined by resistance welding or press‑locking. Every intersection is a weld point, and the entire platform relies on dozens or even hundreds of welded connections.

Key Performance Comparison

Corrosion Resistance
Because expanded metal grating has no weld points, hot‑dip galvanizing provides uniform protection across the entire surface. Weld points on welded grating, however, tend to have thinner zinc coatings and are the first to corrode in aggressive environments such as chemical plants and offshore platforms. In corrosive conditions, expanded metal grating typically lasts 30%–50% longer than welded grating.

Slip Resistance
The stretching process naturally creates a raised diamond pattern on expanded metal grating, delivering high friction even when covered with oil, water, or snow – without any additional treatment. Welded grating has a relatively flat surface; to achieve comparable slip resistance, serrated bars, anti‑slip coatings, or twisted cross bars are usually required. For wet areas (car washes, food processing plants), expanded metal grating holds a clear advantage.

Load Capacity & Structural Rigidity
At equal weight, the continuous strand construction of expanded metal grating provides higher tensile strength. However, welded grating offers greater local rigidity when a perfectly flat surface is needed for forklifts or heavy equipment. For extremely high point loads (forklift outriggers, heavy machine bases), welded grating performs better in rigidity.

Open Area & Cleanability
Expanded metal grating achieves an open area of 30%–70%, far higher than welded grating’s 20%–40%. Higher open area means better drainage, debris shedding, and ventilation, and easier cleaning with high‑pressure water jets. For facilities requiring frequent washdowns or those prone to dust accumulation (slaughterhouses, cement plants, car washes), expanded metal grating is preferred.

Cost & Customization Flexibility
For small‑batch, multi‑size projects (e.g., building stairs, repair platforms where each section has different dimensions), welded grating is more economical – no tooling is required, and bars can be cut and welded on site. Expanded metal grating’s diamond size and strand width are limited by stretching dies, making tooling costs high for small orders. However, for large‑volume standardized orders (hundreds of square meters or more), expanded metal grating’s continuous production process and zero waste give it a significant cost advantage over welded grating.
