What Is Square Hole Perforated Metal
Square hole perforated metal is a type of perforated sheet created by punching uniformly spaced square-shaped openings into a solid metal sheet. Unlike round holes, square holes feature straight sides and sharp corners, creating a distinctive grid-like pattern that offers both functional and aesthetic benefits. The square perforated sheet can be produced in various materials including stainless steel, aluminum, carbon steel, galvanized steel, and brass.
The square mesh created by this perforation method provides a clean, modern aesthetic that architects and designers favor. The manufacturing process involves using specialized machinery to punch out the holes while maintaining the integrity of the metal sheet. Square holes can vary significantly in size and spacing, offering a range of options depending on airflow, strength, or aesthetic requirements.
Key Performance Features
Square hole perforated metal offers several distinctive performance advantages that set it apart from other hole shapes.
High Strength-to-Weight Ratio
Despite having a larger open area than many other hole types, square hole perforated metal maintains a high strength-to-weight ratio. The uniform grid pattern distributes loads evenly across the sheet, enhancing durability and stability. The square hole design maintains structural integrity while reducing weight. Even though the square holes allow more material or air to pass through, this kind of perforated metal remains sturdy and easy to maintain.
Superior Open Area
Square hole perforated metal provides a larger open area than round holes of the same nominal size. This higher open area facilitates excellent airflow and material passage, essential for efficient ventilation and filtration. Square patterns maintain a level of strength that is excellent for withstanding various loads. The open squares allow air, water, or other fluids to pass through effectively.
Modern Aesthetic Appeal
The clean lines of square perforations contribute to a modern and professional appearance. Square hole perforated metal provides a distinctive look with high structural integrity, ideal for durable applications, efficient airflow, and modern architectural designs. The geometric precision of square holes creates a sharp, contemporary visual that enhances any project.
Versatility in DesignSquare hole perforated metal is suitable for a wide range of applications, from industrial machinery guards to decorative architectural elements. The square geometry nests easily with rectangular frames, making it practical for various installations. The versatility of square perforations allows for use in both functional and aesthetic roles.
Open Area and Flow Advantages
The open area of square hole perforated metal is one of its most significant advantages. Understanding how open area is calculated and how it affects performance is essential for proper specification.
Open Area Calculation
The open area is the percentage of the sheet surface occupied by holes. For square hole perforated metal, the calculation depends on the hole arrangement:
- Straight pattern: Open Area % = (W² / P²) × 100%, where W is the side length of the square hole and P is the pitch (center-to-center spacing).
- Staggered pattern: Open Area % = W² / (SP₁ × SP₂) × 100%.
For example, a square perforated sheet with 3 mm square holes and 5 mm pitch in a straight pattern achieves approximately 36% open area. This high open area makes square hole perforated metal particularly effective for applications requiring maximum airflow or material passage.
Flow Advantages
The higher open area of square hole perforated metal provides several flow-related benefits:
- Increased ventilation: The open squares allow air, water, or other fluids to pass through efficiently.
- Enhanced filtration: The uniform square openings ensure consistent particle passage and accurate sizing.
- Improved drainage: Square holes provide excellent drainage in construction applications.
- Better light transmission: The higher open area allows more light to pass through, ideal for architectural applications.
Flow vs. Strength Balance
While square hole perforated metal offers high open area, it is important to balance this against structural requirements. Larger holes allow better airflow but reduce strength. The uniform pattern distributes loads evenly, enhancing durability even with significant open area. For applications where both high airflow and structural integrity are needed, square hole perforated metal provides an excellent solution.
Applications
Square hole perforated metal plays a critical role in various industrial screening and separation processes.

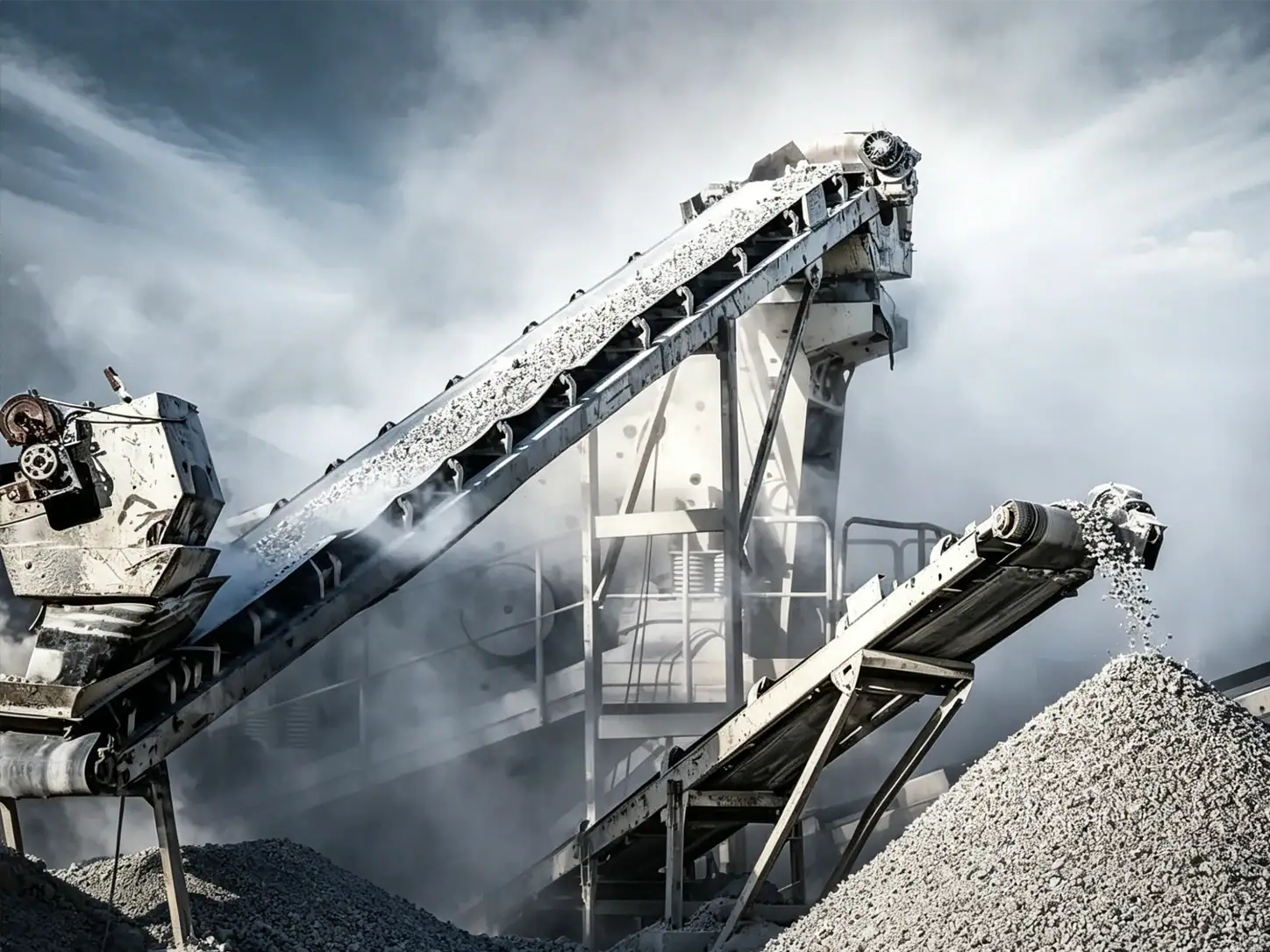

- Mining and Aggregate Screening :In mining and quarrying, square hole perforated metal is used for screening, sifting, and grading minerals, stones, and ores. The square holes provide precise classification of materials, enabling efficient separation of different particle sizes. The rigid structure withstands heavy impact and abrasion, making it ideal for crusher screens and vibrating separators.
- Food Processing and Agriculture: The food processing and agriculture industries rely on square hole perforated metal for grain cleaning, seed sorting, and dry goods pre-sieving. The uniform square openings ensure consistent particle sizing and efficient material flow. The clean geometry of square holes also facilitates easy cleaning and maintenance.
- Chemical and Pharmaceutical Industries: In chemical and pharmaceutical processing, square hole perforated metal is used for precise filtration and material separation. The accurate hole sizes and consistent patterns ensure reliable performance in critical applications. Stainless steel square hole perforated metal is particularly valued for its corrosion resistance and hygienic properties.
- Recycling and Material Handling：Recycling facilities and bulk material handling operations use square hole perforated metal for sorting and classifying various materials. The square holes provide efficient separation of different-sized particles, improving the overall efficiency of recycling processes.
- HVAC and Ventilation Systems：Square hole perforated metal is widely used in HVAC systems, air diffusers, and equipment cooling systems. The high open area allows for optimal airflow while the rigid structure provides durability. Square hole perforated metal is also used in ventilation grilles and acoustic panels.
- Architectural and Design Uses: Beyond industrial applications, square hole perforated metal has become increasingly popular in architecture and interior design.
- Building Facades and Cladding: Square hole perforated metal provides modern aesthetics, sun shading, and ventilation for building exteriors. The geometric precision of square holes creates a distinctive visual pattern that enhances contemporary architecture. Architects use square hole perforated sheets for stylish facades, sunshades, and building ventilation panels. The higher open area allows for effective light and air permeability while maintaining privacy.
- Interior Partitions and Ceilings: Square hole perforated metal enhances light diffusion and maintains an open, breathable design for ceilings and interior partitions. The holes allow light to pass through while providing visual interest and acoustic benefits. Acoustic panels and ceiling tiles made from square hole perforated metal combine functional noise reduction with modern design.
- Security Screens and Fencing: Square hole perforated metal provides durable, modern, and corrosion-resistant solutions for security screening and fencing. The square holes offer a more transparent view through the panel without sacrificing impact resistance. This makes square hole perforated metal ideal for security enclosures, machine guards, and protective barriers.
- Furniture and Retail Displays: The clean, contemporary look of square hole perforated metal makes it ideal for furniture designs, retail fixtures, and shelving systems. The combination of strength and aesthetics allows for creative and functional designs. Square hole perforated metal is also used in displays, exhibits, and sign panels.
- Balustrades and Sunscreens:Square hole perforated metal is commonly applied in balustrades, sunscreens, and stair guards. The square geometry provides one-way visual effects that soften glare without suffocating airflow. This makes it particularly effective for outdoor architectural applications where both aesthetics and functionality are required.
How to Choose the Right Square Hole Spec
Selecting the right square hole perforated metal for your project requires careful consideration of several specifications.
Hole Size
The hole size determines what can pass through the sheet and affects both airflow and strength. Larger holes allow better airflow but reduce strength. Common square hole sizes range from 2 mm to 10 mm or more. For filtration applications, the hole size must be smaller than the particles you wish to retain.
Pitch (Center-to-Center Spacing)
The pitch is the distance from the center of one hole to the center of the adjacent hole. Together with the hole size, the pitch determines the open area percentage. A smaller pitch means more holes per square inch and higher open area, but less material remains between holes, reducing strength.
Sheet Thickness
The sheet thickness affects strength, durability, and weight. Thicker sheets provide more durability but are heavier and more expensive. Typical thicknesses for architectural applications range from 0.5 mm to 2.0 mm, while industrial guards may use up to 3.0 mm.
Pattern Arrangement
Square hole perforated metal can be arranged in several patterns:
- Straight (rectangular) pattern: Holes align in uniform rows and columns, creating a grid-like layout with predictable strength.
- Staggered pitch: Provides balanced open areas and structural stability.
- Diagonal (45° staggered) pitch: Offers unique design options and moderate open areas.
Material Selection
Choose the material based on your environment and application:
- Stainless steel (304/316): Corrosion resistance, hygiene, architectural
- Aluminum: Lightweight, decorative, corrosion-resistant
- Galvanized steel: Moderate corrosion resistance, outdoor use
- Carbon steel: Economical, high strength, indoor use
- Brass: Decorative, antimicrobial
Edge Treatment and Finishes
Consider edge treatment options: closed end patterns provide a clean, continuous look ideal for decorative applications, while open end patterns are more economical for non-decorative uses. Finishes such as powder coating, anodizing, or galvanizing can enhance corrosion resistance or aesthetic appeal.
Xiongqian offers square hole perforated metal in all standard patterns and materials, with custom punching available for specialized applications. Contact us with your specifications – hole size, pitch, material, and sheet dimensions – and we will help you select the optimal configuration.
Conclusion
Square hole perforated metal offers a compelling combination of high open area, structural strength, and modern aesthetics. Its versatility makes it suitable for a wide range of applications, from heavy-duty industrial screening to elegant architectural facades. The clean, geometric lines of square perforations provide a distinctive visual appeal that enhances any project. By understanding the key performance features, open area advantages, and selection criteria, you can confidently specify the right square hole perforated metal for your needs.
