Barbed Wire Fence
Barbed wire fence is the most cost-effective perimeter barrier for agricultural containment, property boundaries and industrial security. Xiongqian manufactures barbed wire to ASTM A121, using 12.5-gauge or 15.5-gauge high-tensile line wires twisted with 2-point or 4-point barbs at 5-inch spacing. Available in Class 1 and Class 3 galvanized coatings for different corrosion environments, with custom strand counts and roll lengths.
Barbed Wire Fence Quick Specs
| Parameter | Range |
|---|---|
| Standard | ASTM A121 |
| Line Wire Gauge | 12.5 gauge (2.5 mm) / 15.5 gauge high-tensile (1.7 mm) |
| Barb Wire Gauge | 14 gauge (2.0 mm) |
| Barb Type | 2-point / 4-point |
| Barb Spacing | 5″ (127 mm) standard; 3″–6″ available |
| Zinc Coating | Class 1 (≥40 g/m²) / Class 3 (≥120 g/m²) / ≥200 g/m² coastal |
| Roll Length | 200 m / 500 m / 1000 m (custom available) |
| Roll Weight | 25 kg / 50 kg standard |
| Strands per Fence Line | 3–5 strands (4 strands standard for farm perimeter) |
Barb Types & Zinc Coating
Two variables determine whether barbed wire lasts 3 years or 15: barb geometry and zinc coating weight. 4-point barbs provide better livestock deterrence and are preferred for cattle and security perimeters; 2-point barbs are lighter and adequate for temporary or low-pressure internal fencing.
Coating is the decisive cost variable — light zinc (under 60 g/m²) on thin wire rusts through in two seasons in humid conditions. For permanent outdoor fencing, specify Class 3 (≥120 g/m²) as the minimum; coastal or high-humidity projects require ≥200 g/m².
| Factor | 2-Point Barb | 4-Point Barb | Class 1 Coating | Class 3 Coating |
|---|---|---|---|---|
| Deterrence Level | Moderate | Higher — preferred for cattle & security | — | — |
| Typical Use | Internal cross-fence, temporary | Farm perimeter, boundary, security | Dry inland, short-term | Humid, permanent outdoor, farm |
| Zinc Weight | — | — | ≥40 g/m² | ≥120 g/m² (≥200 g/m² coastal) |
| Service Life (humid) | — | — | Short — rust risk within 2–3 seasons | 10–15+ years |
Coating weight is measured in g/m² of surface area, not “heavily galvanized” on a spec sheet. Require the coating class on the purchase order, and request a coating weight test report for projects where service life is critical.
Barbed Wire Fence Installation
Installation variables directly affect fence performance and material cost. Standard line posts should be spaced a maximum of 16 feet (4.9 m) on center; adding stays between posts allows spacing up to 20–30 feet without sacrificing strength.
Corner, end and gate posts require bracing in one or two directions. Strand count depends on livestock and boundary type: 4 wires minimum for farm borders, 3 wires acceptable for interior cross-fencing. The top wire should sit at least 42 inches above ground for livestock containment.
| Installation Parameter | Specification |
|---|---|
| Line Post Spacing | Max. 16 ft (4.9 m) without stays; 20–30 ft with stays at 10–15 ft intervals |
| Corner / End Post Bracing | Brace in 2 directions (corner); 1 direction (end, gate) |
| Strand Count — Farm Perimeter | 4 wires minimum |
| Strand Count — Interior Cross-Fence | 3 wires minimum |
| Top Wire Height | ≥42″ (1067 mm) above ground |
| Tensioning | Stretch taut; tensioning assembly required at max. 150 m intervals on long runs |
Applications
Farm, Ranch & Livestock
Permanent perimeter fencing for cattle, horses, sheep and goats. 4-strand 12.5-gauge with 4-point barbs is the standard for cattle; 5 strands for sheep and goats where predator pressure exists. Class 3 galvanizing for humid pasture environments.
Property Boundaries & Land Demarcation
Low-cost, long-run boundary marking for rural properties, plantations and land parcels. 3-strand configuration is often sufficient where containment is not the primary goal.
Industrial & Commercial Perimeter
Barbed wire strands mounted on extension arms atop chain link or welded mesh fence for industrial yards, logistics parks and substations. Adds an anti-climb deterrent without the cost of full razor wire.
Border & Infrastructure Security
Where moderate deterrence is required over long distances, barbed wire remains the economical choice for border fencing and infrastructure perimeters. Combined with razor wire in high-risk zones.
Barbed Wire vs. Razor Wire
Barbed wire and razor wire serve different threat levels, and specifying the wrong one either wastes budget or under-delivers on security. Barbed wire uses twisted wire with pointed barbs — it provides moderate deterrence and is the standard for farms, ranches, property boundaries and industrial perimeters.
Razor wire uses blade-like tape or concertina coils, delivers maximum anti-climb/anti-cut deterrence, and is specified for prisons, military sites and critical infrastructure. Cost is the other decision driver: razor wire typically runs 3–6× the cost of barbed wire per meter.
| Factor | Barbed Wire Fence | Razor Wire Fence |
|---|---|---|
| Deterrence | Moderate — puncture wounds | Maximum — deep lacerations |
| Form | 2–5 twisted strands on posts | Concertina coil (450–980 mm dia.) or flat tape |
| Typical Use | Farms, ranches, boundaries, industrial yards | Prisons, military, substations, critical infrastructure |
| Installation | Standard — DIY possible | Requires professional handling |
| Cost per Meter | Low (baseline) | 3–6× barbed wire |
Related Products
FAQ
Barbed Wire Fence — FAQ
What does ASTM A121 cover for barbed wire?
ASTM A121 is the standard specification for metallic-coated carbon steel barbed wire. It defines the line wire diameter, barb wire diameter, barb type (2-point or 4-point), barb spacing and zinc coating class. Specifying ASTM A121 on the purchase order prevents substitution with undersized or under-coated wire.
How many strands do I need for a farm fence?
4 wires minimum for farm perimeters and boundary fences. 3 wires are acceptable for interior cross-fencing and temporary paddock divisions. For sheep and goats, 5 strands are often used where predator pressure exists.
What zinc coating should I choose?
Class 1 (≥40 g/m²) for dry inland and short-term use. Class 3 (≥120 g/m²) for humid, permanent outdoor fencing — this is the minimum for farm and ranch applications. Coastal or high-humidity projects require ≥200 g/m². Light zinc under 60 g/m² on thin wire can rust through within two seasons.

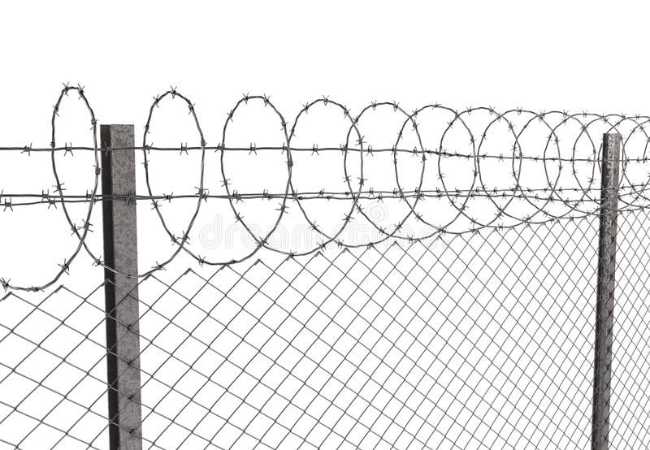

Can barbed wire be used on top of chain link fence?
Yes. This is a common industrial and commercial perimeter configuration. Barbed wire strands are mounted on extension arms (typically 3 or 6 strands) angled outward at 45° atop chain link or welded mesh fencing. It adds anti-climb deterrence at a fraction of the cost of razor wire.
What is the typical lead time and roll size?
Standard rolls of 200 m or 500 m in 25 kg or 50 kg coils ship in 7–15 days. Custom roll lengths and higher zinc coating classes typically require 15–25 days depending on quantity.
Need a Barbed Wire Fence Specification?
Send your line wire gauge, barb type (2-point or 4-point), barb spacing, zinc coating class, roll length and quantity. We will confirm the ASTM A121 specification against your environment and reply with a factory quotation within 24 hours.
